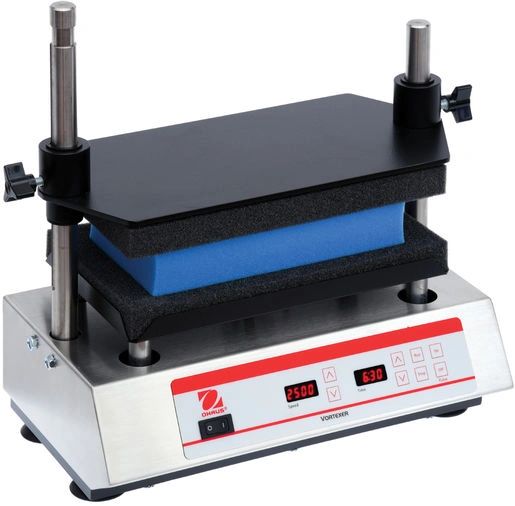

Vortex Mixer, Multi-Tube, VXMTDG, US , Ohaus 30392171

 Vortex Mixer, Multi-Tube, VXMTDG, US , Ohaus 30392171

Improve Efficiency by Processing up to 50 Samples at a Time

Digital models feature touchpad control for easy input of settings, and independent LED displays for speed/time. Timer displays elapsed time and when programmed, shuts off unit when time reaches zero.

Digital models feature a programmable pulse mode which allows the user to adjust the pulse-on/pulse-off times between 1- 59 sec intervals, enhancing the vortex action by creating a more vigorous mix.
The variable speed microprocessor control provides consistent uniform mixing action. Basic speed and time settings are adjusted with knobs using 1 to 10 dial settings.
Product Specifications
Control Digital
Duty Rating Continuous
Orbit 3.6 mm (0.14 in)
Speed Range (text) 500 rpm – 2500 rpm
Capacity (text) 4.5 kg
Dimensions (Height) 40.6 cm (16.0 in)
Dimensions (Length) 24.1 cm (9.5 in)
Dimensions (Width) 38.4 cm (15.1 in)
Net Weight 20.3 kg (44.8 lb)
Power 120V, 5A, 50/60Hz
Safety Certification TUV
Power Consumption 100 W
Tray Size (Length) 18.4 cm (7.25 in)
Tray Size (Width) 31.1 cm (12.25 in)
Working Environment 39°F – 104°F, 20% – 85%RH, non-condensing
Working Environment 4°C – 40°C, 20% – 85%RH, non-condensing
