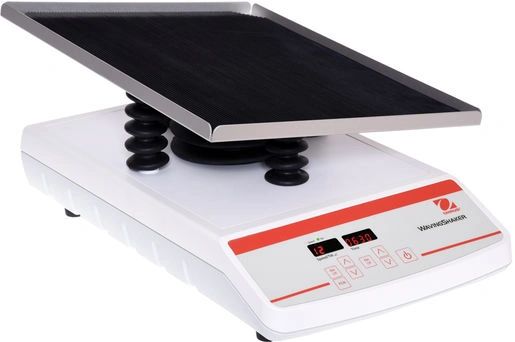

Shaker, Waving, SHWV02DG, US , Ohaus 30391947

Shaker, Waving,  SHWV02DG, US , Ohaus 30391947

Easiest to Use in the Market with Onboard Adjustments for Tilt Angle
Microprocessor control allows for electronic tilt angle adjustment in 1° increments for tilt and 1 rpm for speed (digital models) or independent control knobs for tilt, speed and time (analog models).
Digital models are equipped with LED displays and touchpad controls for speed, tilt angle and time. Timer displays elapsed time or when programmed to a set time, will turn off when time reaches zero.
Speed ramping feature slowly increases speed to desired setpoint to avoid splashing. Audible/visual signals activate when the system detects an obstruction or tray overload.
Product Specifications
Motion Waving, 0 – 20°
Capacity (text) 2.3 kg
Tray Size (Length) 29.9 cm (11.75 in)
Tray Size (Width) 22.2 cm (8.75 in)
Control Digital
Drive System Stepper Motor
Speed Accuracy ±1 rpm
Tray Construction Aluminum
Working Environment 14°F – 140°F, 80%RH, non-condensing
Power Consumption 25 W
Dimensions (Width) 27.9 cm (11.0 in)
Net Weight 6.9 kg (15.2 lb)
Power 120V, 5A, 50/60Hz
Dimensions (Length) 43.2 cm (17.0 in)
Dimensions (Height) 15.2 cm (6.0 in)
Working Environment -10°C – 60°C, 80%RH, non-condensing
Safety Certification TUV
Timer 1 second – 160 hours
Speed Range (text) 1 rpm – 30 rpm
Tilt Angle 0 – 20°
