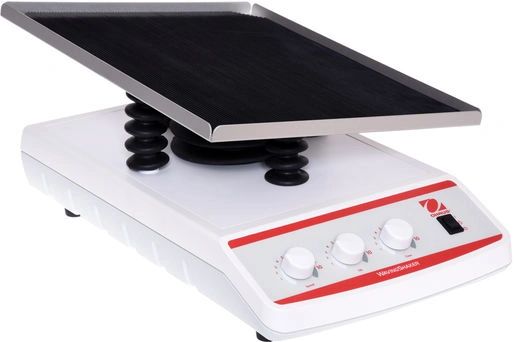

Shaker, Waving, SHWV02AL, US , Ohaus 30391973

Shaker, Waving,  SHWV02AL, US , Ohaus 30391973

Easiest to Use in the Market with Onboard Adjustments for Tilt Angle
Microprocessor control allows for electronic tilt angle adjustment in 1° increments for tilt and 1 rpm for speed (digital models) or independent control knobs for tilt, speed and time (analog models).
Digital models are equipped with LED displays and touchpad controls for speed, tilt angle and time. Timer displays elapsed time or when programmed to a set time, will turn off when time reaches zero.
Speed ramping feature slowly increases speed to desired setpoint to avoid splashing. Audible/visual signals activate when the system detects an obstruction or tray overload.
Product Specifications
Motion Waving, 0 – 16°
Capacity (text) 2.3 kg
Tray Size (Length) 35.6 cm (14.0 in)
Tray Size (Width) 27.9 cm (11.0 in)
Control Analog
Drive System Stepper Motor
Speed Range (text) 1 rpm – 75 rpm
Timer 1 second – 160 hours
Dimensions (Width) 27.9 cm (11.0 in)
Working Environment -10°C – 60°C, 80%RH, non-condensing
Safety Certification TUV
Dimensions (Height) 16.5 cm (6.5 in)
Tilt Angle 0 – 16°
Tray Construction Aluminum
Dimensions (Length) 42.5 cm (16.8 in)
Working Environment 14°F – 140°F, 80%RH, non-condensing
Power 120V, 0.125A, 50/60Hz
Net Weight 6.6 kg (14.6 lb)
Power Consumption 15 W
