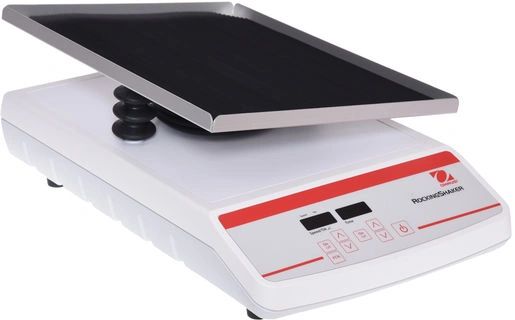

Shaker, Rocking, SHRK04DG, US , Ohaus 30391994

Shaker, Rocking,  SHRK04DG, US , Ohaus 30391994

Easiest to Use in the Market with Onboard Adjustments for Tilt Angle
Microprocessor control allows for electronic tilt angle adjustment in 1° increments for tilt and 1 rpm for speed (digital models) or independent control knobs for tilt, speed and time (analog models).
Digital models are equipped with LED displays and touchpad controls for speed, tilt angle and time. Timer displays elapsed time or when programmed to a set time, will turn off when time reaches zero.
Speed ramping feature slowly increases speed to desired setpoint to avoid splashing. Audible/visual signals activate when the system detects an obstruction or tray overload.
Product Specifications
Motion Rocking, 0 – 15°
Capacity (text) 4.5 kg
Tray Size (Length) 32.4 cm (12.75 in)
Tray Size (Width) 25.4 cm (10.0 in)
Control Digital
Drive System Stepper Motor
Tilt Angle 0 – 15°
Tray Construction Aluminum
Dimensions (Width) 25.4 cm (10.0 in)
Dimensions (Length) 42.5 cm (16.8 in)
Safety Certification TUV
Dimensions (Height) 14.0 cm (5.5 in)
Working Environment 14°F – 140°F, 80%RH, non-condensing
Power Consumption 25 W
Power 120V, 5A, 50/60Hz
Net Weight 3.0 kg (6.6 lb)
Working Environment -10°C – 60°C, 80%RH, non-condensing
Speed Range (text) 1 rpm – 50 rpm
Timer 1 second – 160 hours
