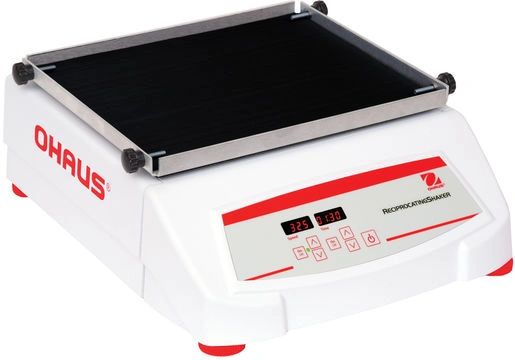

Shaker, Reciprocating, SHRC0719DG, US , Ohaus 30391828

Shaker, Reciprocating,  SHRC0719DG, US ,  Ohaus 30391828

Providing Consistent Shaking Action for a Range of Applications
Touchpad controls with independent LED's for speed/time allow operator to view all settings at once. Timer displays elapsed time or when programmed to a set time, will turn off when time reaches zero.
Speed ramping feature slowly increases the speed to desired set-point to avoid splashing. The load sensor detects unbalanced conditions & automatically reduces rpm to a safe speed to protect samples.
Our shakers are equipped with an overload protection system. Audible and visual signals will activate when the system detects an obstruction or overload of the tray to warn the operator.
Product Specifications
Motion Reciprocating, 19 mm
Capacity (text) 6.8 kg
Tray Size (Length) 27.9 cm (11.0 in)
Tray Size (Width) 33.0 cm (13.0 in)
Control Digital
Drive System Brushless DC Motor;
Single Eccentric
Calibration Speed calibration
Working Environment 14°F – 140°F, 80%RH, non-condensing
Dimensions (Width) 35.5 cm (14.0 in)
Stroke (imp:) 0.75
Tray Construction Aluminum
Stroke 19
Speed Range (text) 20 rpm – 300 rpm
Net Weight 21.8 kg (48.1 lb)
Safety Certification TUV
Power Consumption 40 W
Dimensions (Height) 14.9 cm (5.9 in)
Dimensions (Length) 41.3 cm (16.3 in)
Working Environment -10°C – 60°C, 80%RH, non-condensing
Power 120V, 5A, 50/60Hz
Timer 1 second – 160 hours
Speed Accuracy ±1 rpm, Above 100 rpm ±1% of set speed
