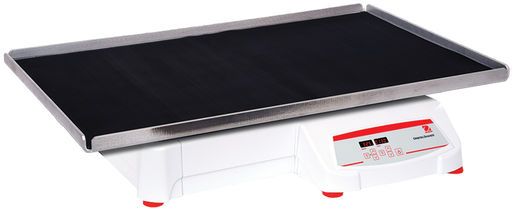

Shaker, Heavy Duty, SHHD6850DG, US , Ohaus 30391884

Shaker, Heavy Duty,  SHHD6850DG, US , Ohaus 30391884

Eight Model Options to Suit the Right Capacity for Your Application
The exclusive Accu-Drive shaking system on digital models utilizes dual-speed sensors to continuously monitor and maintain shaking speed - delivering exceptional speed control, accuracy & durability.
Touchpad controls with independent LEDs for speed/time allow operator to view all settings at once. Timer displays elapsed time or when programmed to a set time, will turn off when time reaches zero.
Speed ramping feature slowly increases the speed to desired setpoint to avoid splashing. The load sensor detects unbalanced conditions & automatically reduces rpm to a safe speed to protect samples.
Product Specifications
Motion Orbital, 51 mm
Capacity (text) 68 kg
Tray Size (Length) 61.0 cm (24.0 in)
Tray Size (Width) 91.0 cm (36.0 in)
Control Digital
Drive System Brushless DC Motor;
Triple Eccentric
Orbit 51.0 mm (2.0 in)
Tray Construction Aluminum
Timer 1 second – 160 hours
Working Environment 14°F – 140°F, 80%RH, non-condensing
Net Weight 103.9 kg (229.1 lb)
Safety Certification TUV
Dimensions (Length) 74.4 cm (29.3 in)
Working Environment -10°C – 60°C, 80%RH, non-condensing
Speed Accuracy ±1 rpm, Above 100 rpm ±1% of set speed
Speed Range (text) 15 rpm – 300 rpm
Calibration Speed calibration
Power 120V, 5A, 50/60Hz
Dimensions (Height) 17.0 cm (6.7 in)
Dimensions (Width) 91.4 cm (36.0 in)
Power Consumption 80 W
