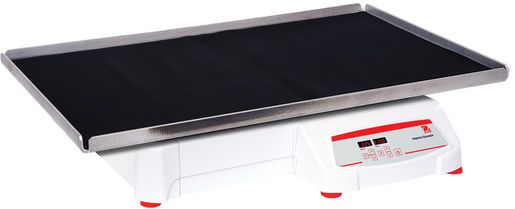

Shaker, Heavy Duty, SHHD6825DG, US , Ohaus 30391877

Shaker, Heavy Duty,  SHHD6825DG, US , Ohaus 30391877

Eight Model Options to Suit the Right Capacity for Your Application
The exclusive Accu-Drive shaking system on digital models utilizes dual-speed sensors to continuously monitor and maintain shaking speed - delivering exceptional speed control, accuracy & durability.
Touchpad controls with independent LEDs for speed/time allow operator to view all settings at once. Timer displays elapsed time or when programmed to a set time, will turn off when time reaches zero.
Speed ramping feature slowly increases the speed to desired setpoint to avoid splashing. The load sensor detects unbalanced conditions & automatically reduces rpm to a safe speed to protect samples.
Product Specifications
Motion Orbital, 25 mm
Capacity (text) 68 kg
Tray Size (Length) 61.0 cm (24.0 in)
Tray Size (Width) 91.0 cm (36.0 in)
Control Digital
Drive System Brushless DC Motor;
Triple Eccentric
Speed Range (text) 15 rpm – 500 rpm
Orbit 25.0 mm (1.0 in)
Timer 1 second – 160 hours
Dimensions (Length) 74.4 cm (29.3 in)
Power Consumption 80 W
Power 120V, 5A, 50/60Hz
Dimensions (Width) 91.4 cm (36.0 in)
Safety Certification TUV
Net Weight 103.9 kg (229.1 lb)
Dimensions (Height) 17.0 cm (6.7 in)
Calibration Speed calibration
Speed Accuracy ±1 rpm, Above 100 rpm ±1% of set speed
Tray Construction Aluminum
Working Environment -10°C – 60°C, 80%RH, non-condensing
Working Environment 14°F – 140°F, 80%RH, non-condensing
