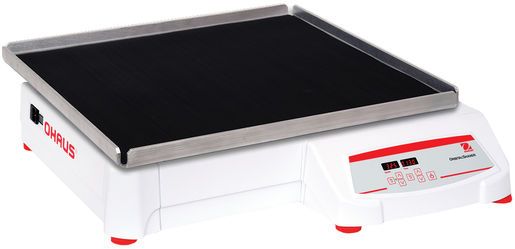

Shaker, Heavy Duty, SHHD4550DG, US , Ohaus 30391870

Shaker, Heavy Duty, SHHD4550DG, US  , Ohaus 30391870

Eight Model Options to Suit the Right Capacity for Your Application
The exclusive Accu-Drive shaking system on digital models utilizes dual-speed sensors to continuously monitor and maintain shaking speed - delivering exceptional speed control, accuracy & durability.
Touchpad controls with independent LEDs for speed/time allow operator to view all settings at once. Timer displays elapsed time or when programmed to a set time, will turn off when time reaches zero.
Speed ramping feature slowly increases the speed to desired setpoint to avoid splashing. The load sensor detects unbalanced conditions & automatically reduces rpm to a safe speed to protect samples.
Product Specifications
Motion Orbital, 51 mm
Capacity (text) 45.4 kg
Tray Size (Length) 61.0 cm (24.0 in)
Tray Size (Width) 61.0 cm (24.0 in)
Control Digital
Drive System Brushless DC Motor;
Triple Eccentric
Power Consumption 80 W
Speed Accuracy ±1 rpm, Above 100 rpm ±1% of set speed
Tray Construction Aluminum
Net Weight 90.3 kg (199.1 lb)
Safety Certification TUV
Dimensions (Length) 72.9 cm (28.7 in)
Dimensions (Width) 67.8 cm (26.7 in)
Working Environment -10°C – 60°C, 80%RH, non-condensing
Dimensions (Height) 17.0 cm (6.7 in)
Working Environment 14°F – 140°F, 80%RH, non-condensing
Calibration Speed calibration
Power 120V, 5A, 50/60Hz
Orbit 51.0 mm (2.0 in)
Speed Range (text) 15 rpm – 300 rpm
Timer 1 second – 160 hours
