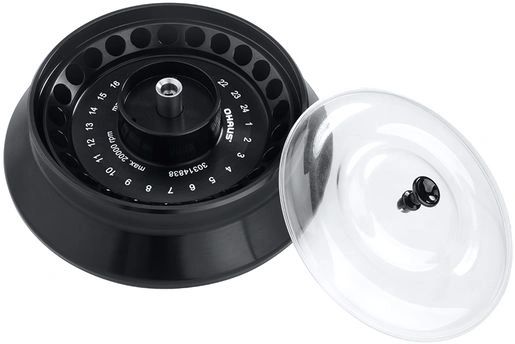

Rotor, Angle, Maximum Capacity 24x1.5/2.0ml, Ohaus ID 30314838

Rotor, Angle,  Maximum Capacity 24x1.5/2.0ml,  Ohaus ID 30314838

Offering Flexibility to Maximize Sample Preparation

Choose from a range of rotors to be used with Frontier centrifuges to match capacities and flexibility required for your basic to high-performance sample preparation needs.

Designed with usability in mind, the Frontier rotors can be effortlessly installed or removed in a few quick and simple steps, and users have easy access to the samples.

The sturdy rotors are constructed of high-quality materials, built to last through demanding workflows from autoclave sterilization to sub-zero temperature.
Product Specifications
Maximum Capacity (Rotor) 24 x 1.5 / 2.0 ml
Maximum Relative Centrifuge Force (x g) 24,325 g
Net Weight 1.64 kg (3.62 lb)
Outer/Inner Radius (numeric) 85 mm
Rotor Style Angle
Maximum Speed 16,000 rpm
Aerosol tight Not applicable
Maximum loading weight 81.6 g
Acceleration Time (sec) 22 / 251
Dimensions (ØDiameter) 174.0 mm (6.85 in)
Multiple Maximum Speeds Yes
Working Environment Temperature: -20ºC – 50ºC, Humidity: <95%
Deceleration Time (sec) 16 / 635
Compatible Models FC5714;
FC5718;
FC5718R;
FC5816;
FC5816R
Angle 45°
Working Environment -4°F – 122°F, 95%RH, non-condensing
Tube diameter without adapter 12 mm / 2.0 ml,1.5 ml
