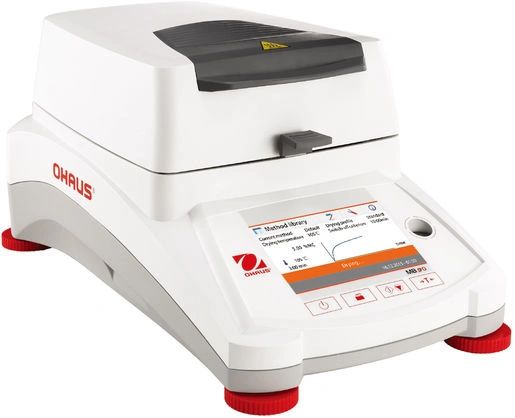

Moisture Analyzer, MB90 AM maximum Capacity 90gr , Ohaus 30241164

Moisture Analyzer, MB90 AM maximum Capacity 90gr ,  Ohaus 30241164

Combining Speed and Precision in One Moisture Analyzer –Test More Samples in Less Time

The MB90's precisely controlled halogen heating dries samples quickly, and ensures uniform heating to yield fast, precise and repeatable results of 0.01% readability.

Designed with effortless maintenance in mind, the MB90 features a removable pan handler and heating chamber components that make cleaning quick and easy - no tools needed.

Icon-based menu navigation on the easy-to-read touchscreen display makes operating the MB90 intuitive. Perform routine sample testing in three easy steps – no training required.

Product Specifications

Maximum Capacity 90 g

Readability Moisture Content 1 mg/0.01%

Pan Size (Ø_Diameter) 90 mm

Heater Type Halogen Lamp

Test Weight 50g, OIML F2 or ASTM CL 4

Net Weight 5.23 kg (11.53 lb)

Heating Profiles Standard;

Fast

Dimensions (Length) 355.0 mm (13.98 in)

In-use cover Included

Power 115 v, 60 Hz

Dimensions (Width) 211.0 mm (8.31 in)

Dimensions (Height) 180.0 mm (7.09 in)

Operating Range (Temp.) 10 °C – 40 °C

Working Environment 50°F – 104°F, 85%RH, non-condensing

Test Library 2

Sample Size 0.5 g – 90 g

Display Full-Color 4.3 in Touchscreen WQVGA

Shut-Off Criteria Manual;

Timed;

Auto

Temperature Range 40 °C – 200 °C

Moisture Range 0 % – 100 %

Working Environment 10°C – 40°C, 85%RH, non-condensing
