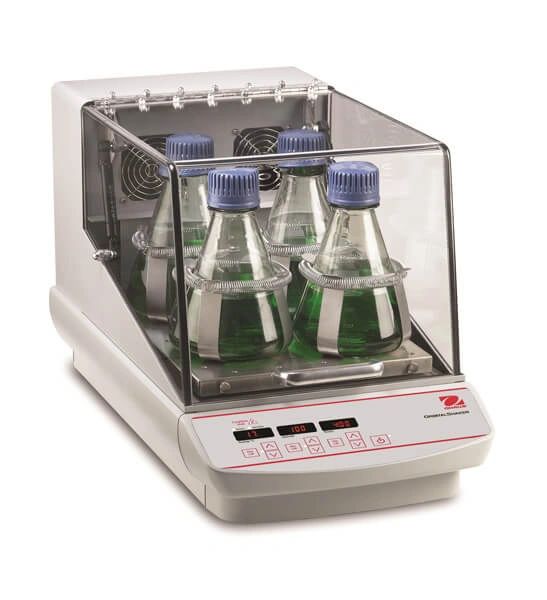

INCUBATING HEAVY DUTY ORBITAL SHAKER , Ohaus 30573769
$3,500.00
$2,999.99
INCUBATING HEAVY DUTY ORBITAL SHAKER , Ohaus 30573769
Applications
Cell Cultures, Solubility Studies, Bacterial Suspensions, Extraction Procedures
Display
Independent LED displays for temperature, speed and time
Operation
N/A
Communication
RS232
Construction
Aluminum and Cycoloy
Design Features
Temperature calibration feature, overload protection, overshoot protection (temperature), load sensor, PID temperature controller, Triple Eccentric Drive system
Motion
Orbital, 19 mm
Capacity
35 lb (16kg)@ 75rpm, 5 lb (2.3kg)@ 500 rpm
Temperature Range
Ambient +5°C – 65°C
Uniformity
± 0.5°C at 37°C
Speed Range
15 rpm – 500 rpm
Tray Size (LxW)
13 in x 11 in (330 mm x 279 mm)
Calibration
Temperature calibration
Communication
RS232
Control
Digital
Dimensions
16 in x 25.5 in x 14 in (406 mm x 648 mm x 356 mm) (HxLxW)
Drive System
Triple Eccentric; Brushless DC Motor
Inner Dimensions (HxHxLxLxWxW)
9.5 in x 241 mm x 13.4 in x 340 mm x 12 in x 305 mm
Net Weight
79.11 lb (35.9 kg)
Power
120V, 5A, 50/60Hz
Power Consumption
450 W
Safety Certification
TUV
Speed Accuracy
Above 100rpm +/- 1%, Below 100rpm /- 1 rpm
Speed Range
15 rpm – 500 rpm
Timer
1 second – 160 hours
Tray Construction
Aluminum
Working Environment
59°F – 90°F, 80%RH, non-condensing (15°C – 32°C, 80%RH, non-condensing)
| Motion | Orbital, 19 mm |
| Capacity | 35 lb (16kg)@ 75rpm, 5 lb (2.3kg)@ 500 rpm |
| Temperature Range | Ambient +5°C – 65°C |
| Uniformity | ± 0.5°C at 37°C |
| Speed Range | 15 rpm – 500 rpm |
| Tray Size (LxW) | 13 in x 11 in (330 mm x 279 mm) |
| Calibration | Temperature calibration |
| Communication | RS232 |
| Control | Digital |
| Dimensions | 16 in x 25.5 in x 14 in (406 mm x 648 mm x 356 mm) (HxLxW) |
| Drive System | Triple Eccentric; Brushless DC Motor |
| Inner Dimensions (HxHxLxLxWxW) | 9.5 in x 241 mm x 13.4 in x 340 mm x 12 in x 305 mm |
| Net Weight | 79.11 lb (35.9 kg) |
| Power | 120V, 5A, 50/60Hz |
| Power Consumption | 450 W |
| Safety Certification | TUV |
| Speed Accuracy | Above 100rpm +/- 1%, Below 100rpm /- 1 rpm |
| Speed Range | 15 rpm – 500 rpm |
| Timer | 1 second – 160 hours |
| Tray Construction | Aluminum |
| Working Environment | 59°F – 90°F, 80%RH, non-condensing (15°C – 32°C, 80%RH, non-condensing) |
