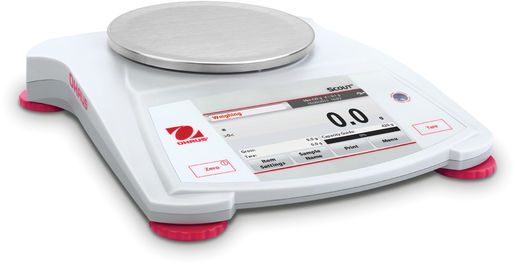

Electronic Balance, Maximum Capacity 420 gr STX421 AM , Ohaus 30253012
Setting New Standards in Laboratory & Industrial Weighing - The Next Generation of Scout Balances
Large, resilient color touchscreen allows for effortless operation of the Scout through its informative icon driven menu structure, guiding the user through every step of the weighing application.
Stabilization time as fast as 1 sec means increased productivity in your facility. Equipped with advanced weighing technology, the Scout also ensures repeatable and reliable weighing results.
Integrated superior overload protection system rated at 10 times the capacity protects the balance in rugged and demanding environments. The space-saving, slim design allows for stackable storage.
Product Specifications
Maximum Capacity 420 g
Readability 0.1 g
Pan Size (Ø_Diameter) 120.0 mm (4.7 in)
Battery Life 6 Hours with Disposable Batteries
Net Weight 1.0 kg (2.2 lb)
Working Environment 10°C – 40°C, 80%RH, non-condensing
Stabilization Time 1 s
Tare Range To capacity by subtraction
Legal for Trade Not Applicable
Dimensions (Height) 54.0 mm (2.1 in)
Power AC Adapter (Included);
4 AA (LR6) Batteries (Not Included)
Repeatability (typical) 0.1 g
Linearity ± 0.1 g
Pan Construction Stainless Steel
Transportation Case Available as an Accessory
Test Weight 400g, OIML F2 or ASTM CL 4
Dimensions (Length) 224.0 mm (8.8 in)
Display Full-Color 4.3 in Touchscreen WQVGA
Working Environment 50°F – 104°F, 80%RH, non-condensing
Dimensions (Width) 202.0 mm (8.0 in)
In-use cover Available as an Accessory
Auxiliary Display Model Available as an Accessory
